UAV detection Equipment
RF Drone Detection

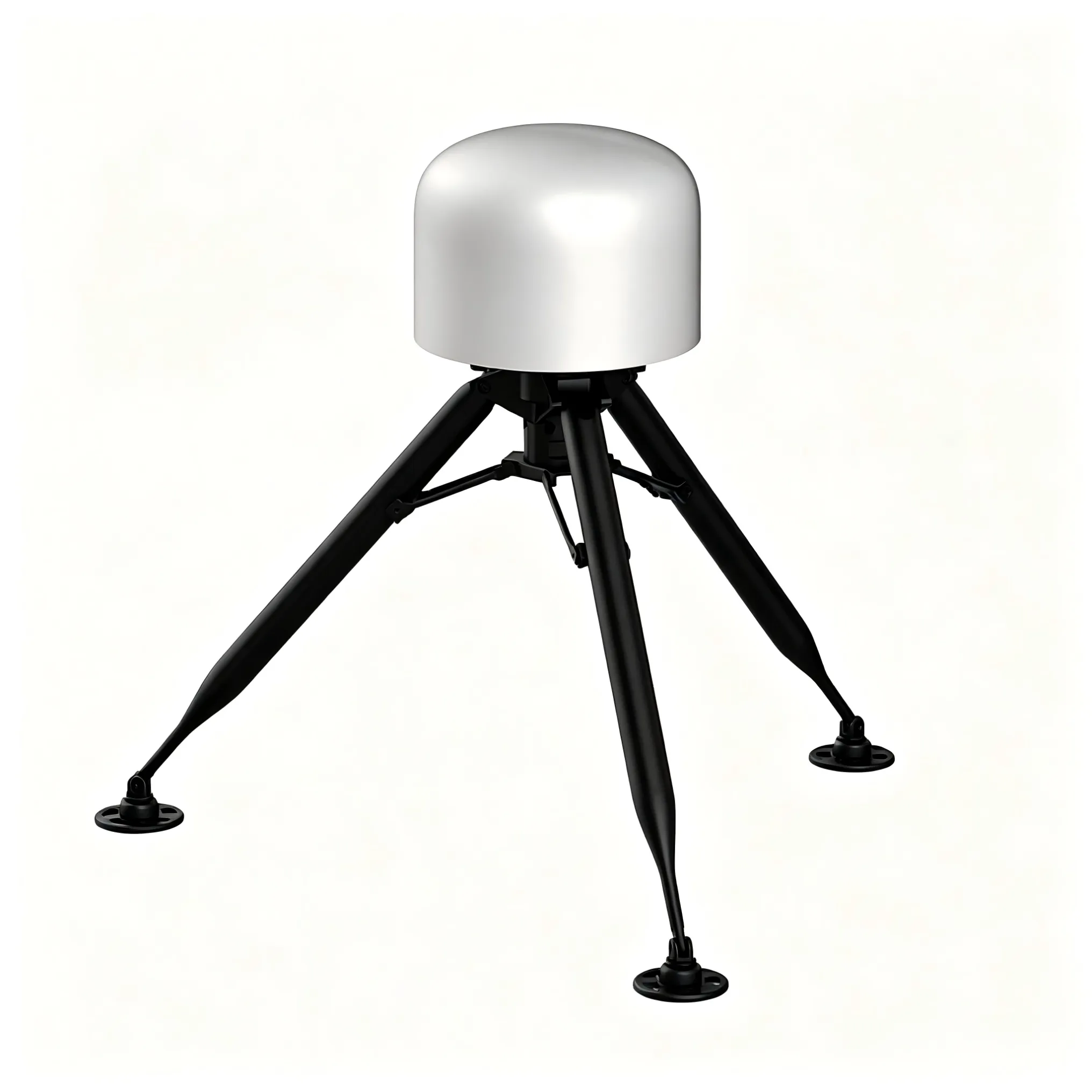

The S5000+ full-frequency spectrum detection equipment adopts the second generation wireless detection technology. It adds a multi-station time difference positioning (TDOA) function and has precise positioning. UAV location capabilities
Specifications
- Detection coverage band
- 300MHz - 6GHz full frequency band detection
- Detection range
- Horizontal 360° omnidirectional
- Detection radius
- ≥ 5 km (open environment, drone transmission power >0.1W,bandwidth 10MHz)
- Single station direction finding accuracy
- ≤3°(root mean square)
Integrated Anti-Drone Detector with 5km Detection Radius 360° Omnidirectional Coverage for Important Locations
The S5000+ full-frequency spectrum detection equipment adopts the second generation wireless detection technology. Based on the first generation multi-element antenna array amplitude direction finding (AOA), it adds a multi-station time difference positioning (TDOA) function and has precise positioning. UAV location capabilities. At the same time, this model of spectrum detection equipment integrates our company’s unique consumer-grade drone protocol cracking algorithm, has the ability to accurately locate mainstream DJI drones and remote controls, and supports the capture of pilots.
The device supports amplitude and direction + protocol analysis technology, with functions such as drone detection and early warning, identification of most DJI drone models, location analysis, position tracking and trajectory tracking, etc. It supports multi-station TDOA accurate positioning, and can be based on The monitoring area can be freely expanded to include any number of detection devices; at the same time, the protocol cracking technology can also accurately locate the position of the DJI drone remote control and support the capture of the pilot.
Serial Number | Index | Parameter |
1 | Detection system | Radio passive detection |
2 | Detection signal type | UAV digital transmission signal, FPV analog signal, WIFI system UAV signal，DVBS signal drone. |
3 | Detection drone types | Most conventional consumer drones, some unconventional drones, some fixed-wing drones, and some flying drones |
4 | Detection coverage band | 300MHz - 6GHz full frequency band detection |
5 | Detection range | Horizontal 360° omnidirectional |
6 | Single station direction finding accuracy | ≤3°(root mean square) |
7 | Detection radius | ≥ 5 km (open environment, drone transmission power >0.1W,bandwidth 10MHz) |
8 | Detection height | ≥ 1000m |
9 | Multi-station detection accuracy | The positioning accuracy of multi-station equipment within the station is ≤30m, and the positioning accuracy outside the station is ≤100m. |
10 | Number of multi-site deployments | ≥3 |
11 | Multi-site deployment interval | ≥500m |
12 | Target false alarm rate | ≤5 pieces/day (24H) (typical urban environment) |
13 | Receive sensitivity | ≤- 115dBm |
