Drone Detection Radar
The radar operates in X-band, azimuth machine scanning, pitch phase scanning, is a pulse Doppler system three-coordinate radar, specially designed for low-altitude detection of small micro-targets (UAVs).It can be cascaded with countermeasures equipment such as jamming, laser weapons and navigation deception.
Specifications
- Operating frequency
- X-band (9 GHz to 10.2 GHz)
- Detection angle
- Azimuth: 0°~360° scanning, pitch angle 0°~30
- Detection distance
- >8km (micro-drone RCS = 0.01m2，DJI phantom 4 series) >10km (RCS=0.1m2 for small drone)
- Detection accuracy
- Distance accuracy: ≤10m Azimuth accuracy: ≤0.5°. Pitching accuracy: ≤0.5°.

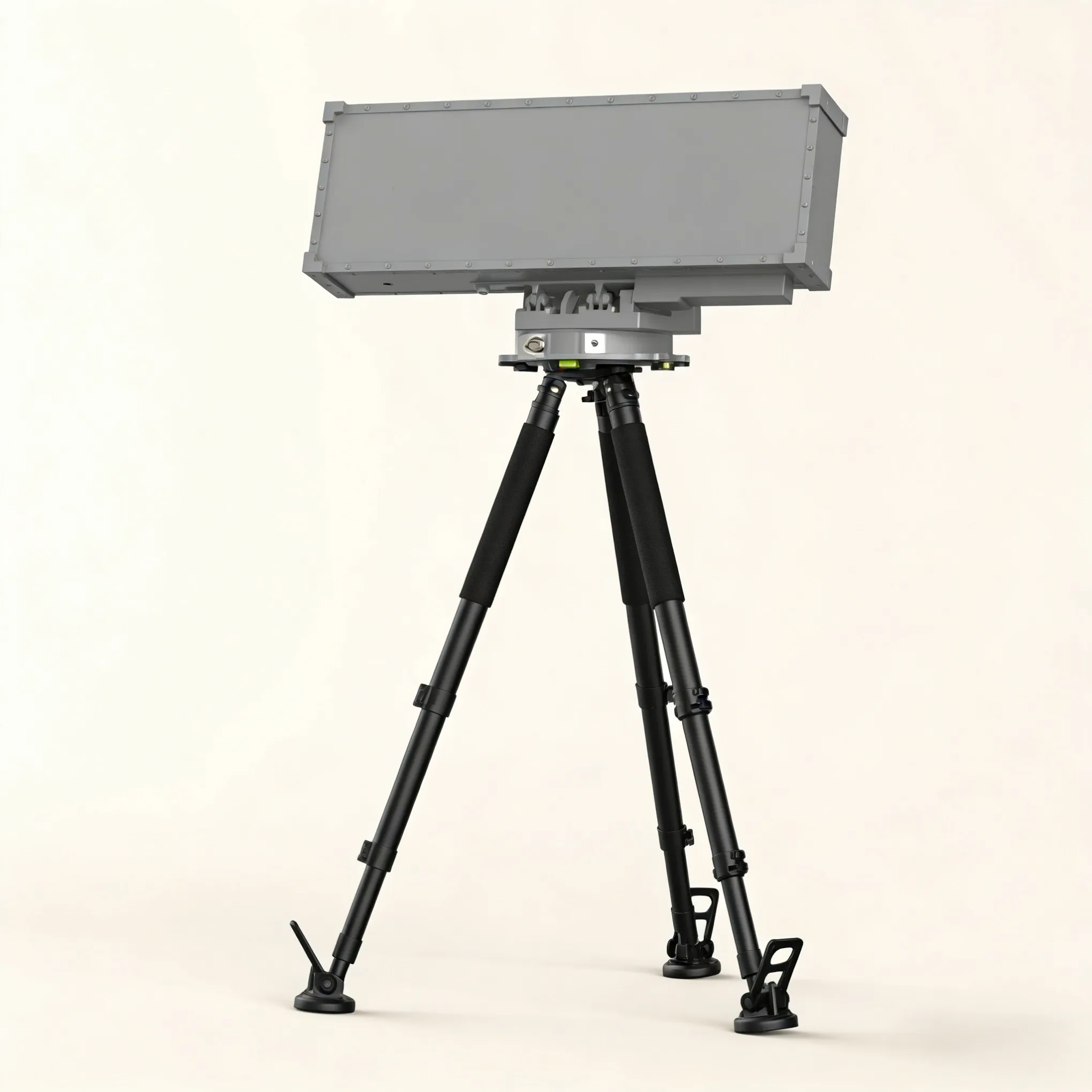

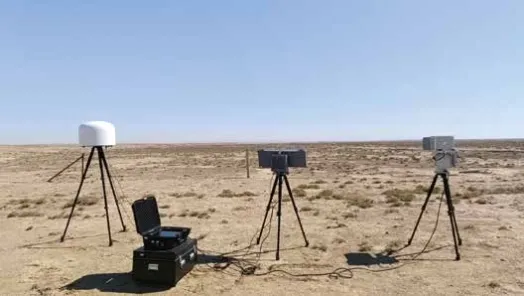

CL-R8000 X-Band Drone Detection Radar, 10km Low Altitude Surveillance Radar for UAV Tracking
The R8000 radar detection equipment is an azimuth machine-scanning, pitch-dimensionally sweeping pulse Doppler system three-coordinate radar, which is mainly used to detect and localize low-altitude aircraft and ground moving vehicles, personnel and sea vessels. The radar can accurately detect the spatial position of the target, and with the photoelectric system, it can be cascaded with countermeasures equipment such as jamming, laser weapons and navigation deception.
The radar detecting equipment transmits electromagnetic waves, utilizes the electromagnetic wave echoes to discover the target, and accurately measures the target's distance, orientation, altitude, speed and other parameters, so as to accurately guide the jamming equipment and laser weapons to carry out the countermeasure strikes. The radar operates in X-band, azimuth machine scanning, pitch phase scanning, is a pulse Doppler system three-coordinate radar, specially designed for low-altitude detection of small micro-targets (UAVs).
Index | Parameter |
Operating frequency | X-band (9 GHz to 10.2 GHz) |
Organization of work | Linear FM pulse |
Scanning method | Pitch phase scanning + azimuthal mechanical scanning |
Detection angle | Azimuth: 0°~360° scanning, pitch angle 0°~30 |
Measuring dimension | Distance/bearing/pitch/speed |
Detection distance | >8km (micro-drone RCS = 0.01m2，DJI phantom 4 series) >10km (RCS=0.1m2 for small drone) |
Detection accuracy | Distance accuracy: ≤10m Azimuth accuracy: ≤0.5°. Pitching accuracy: ≤0.5°. |
Resolution (of a photo) | Distance ≤20m Azimuth resolution: ≤2.5° Pitch resolution: ≤4° |
Speed range | 1m/s~80m/s |
Near blind spot | ≤200m |
Target capacity | ≥ 200 |
Tracking method | TWS/Continuous Tracking |
Self-inspection capabilities | Real-time sub-system work status monitoring |
Communication protocols | UDP |
