UAV detection Equipment

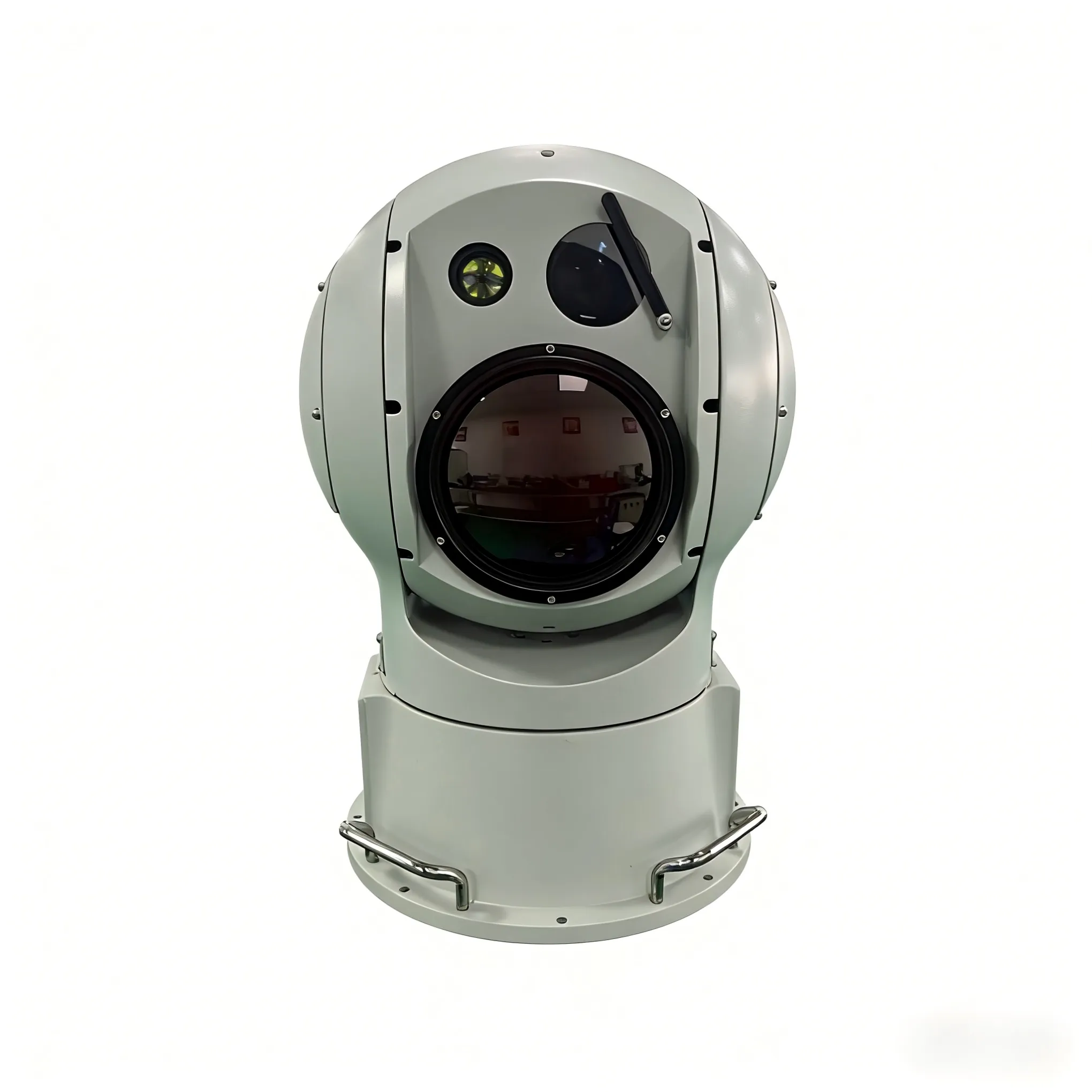

Photoelectric Tracking Camera
The IR Tracking Camera has a built-in high-definition visible light fog-penetrating network camera and thermal imaging camera, and a built-in intelligent target detection and tracking algorithm, which can realize 24-hour uninterrupted target identification and tracking in visible light, low illumination, severe fog and haze weather, and night.
Specifications
- Minimum illumination
- Color:0.002Lux Black and white:0.0002Lux @(F1.8, AGC ON)
- Maximum resolution
- Full HD/1080P(1920x1080)
- Detection distance (miniature drone 0.3*0.3m)
- thermal imaging≥1.5km; visible light≥3km
- PTZ protection level
- IP66
Photoelectric Tracking Camera More Than 3km for Discovering and Tracking Drones
Product description
The IR Tracking Camera has a built-in high-definition visible light fog-penetrating network camera and thermal imaging camera, and a built-in intelligent target detection and tracking algorithm, which can realize 24-hour uninterrupted target identification and tracking in visible light, low illumination, severe fog and haze weather, and night.
The camera adopts a high-strength shock-absorbing alloy die-cast shell, with overall three-proof spray coating, heat insulation, high temperature and severe cold resistance, impact resistance, corrosion resistance, and good wind resistance and shock absorption performance.
Product features
Photoelectric tracking equipment is mainly responsible for searching and discovering drones in a small area, and accurately tracking the drone after discovering it. This product uses laser fill-in light to achieve 7×24 hours of operation. The pan/tilt uses a high-precision stepper motor to provide multiple high-precision preset positions and learning trajectories. It adopts full digital control, allowing for rapid positioning and continuous tracking and scanning. It comes with powerful computing power and deep learning capabilities .
Features
- All-day monitoring-- Integrated high-definition visible light and uncooled thermal imaging, dual-band detection advantages complement each other, making the target invisible and meeting the monitoring needs in day and night and all-weather environments.
- Built-in intelligent tracking and recognition algorithm-- The camera has a built-in deep learning tracking algorithm, which can realize radar or RF detector guided rapid locking, automatic identification and tracking, and manual locking and tracking; it can automatically adjust the focal length and focus of the lens according to the size of the target in the video screen.
- High control accuracy --It adopts worm gear transmission, high-precision servo motor control, high-precision preset position and self-learning trajectory, supports setting key areas of concern, and supports self-locking, which is suitable for equipment self-protection after the dynamic platform is powered off.
- Stable and reliable, high protection level-- The spherical design is resistant to strong winds, has low agitation, and provides stable and clear imaging. It also adopts a rainstorm and dust proof design, and has lightning protection, surge protection, and corrosion resistance.S/N
| Index | Parameter |
Visible light | ||
1 | Image Sensor | 1/1.8 progressive scan CMOS image sensor |
2 | Minimum illumination | Color:0.002Lux Black and white:0.0002Lux @(F1.8, AGC ON) |
3 | Maximum resolution | Full HD/1080P(1920x1080) |
4 | Focal length | 6.9~345mm |
5 | Through fog | Optical fogging |
Uncooled Thermal Imaging | ||
6 | Detector | Uncooled Vanadium Oxide Focal Plane Detector |
7 | Pixel | 640 x 512 (17um pixels) |
8 | NETD | ≤40mk |
9 | Spectral range | 7.5~14μm |
10 | Lens focal length | 30--150mm |
S/N | Index | Parameter |
1 | Tracking mode | Manual, automatic, radar linkage |
2 | Intelligent | Detection, identification and tracking functions for targets, with linked alarms and disposal; automatic identification of more than 80 types of targets such as drones, people, cars, birds, etc., and display of the type of identified targets and the percentage of similarity. |
3 | Power supply | AC220V±10%, 50Hz |
4 | Detection distance (miniature drone 0.3*0.3m) | thermal imaging≥1.5km; visible light≥3km |
5 | Power consumption | ≤100W |
6 | size | ≤ 360 mm ( length ) × 360 mm ( width ) × 604 mm ( height ) |
7 | Communication Interface | 1 RJ45 10M/100M adaptive Ethernet port |
8 | Operating temperature | -40℃-60℃ |
9 | PTZ protection level | IP66 |
10 | Weight (net weight) | ≤38kg |
