UAV Jamming Equipment
Full frequency jamming equipment
Full-frequency jamming equipment can suppress the receiving channels of the UAV's navigation signals, remote control signals, and image transmission signals, making the UAV unable to locate or lose control, thus achieving the purpose of denying intruding UAVs.
Specifications
- Material
- Powder-coated steel with cork feet
- Interference distance
- ≥3km (0.1W radiation source，Drone：DJI Mavic 2series)
- Antenna launch angle
- ≥90° (<2G frequency band); ≥60° (2G-4G); ≥30° (>4G)
Wholesale Pricie Full-Frequency Anti-Drone Jammer for Low Surveillance Protection
The full-frequency jamming device is a software-defined jammer that can customize interference frequency points according to mainstream UAV frequency bands and supports independent or combined output of multiple interference channels. Full-frequency jamming equipment emits electromagnetic waves to interfere with UAV satellite navigation signals or block the communication link between the UAV and the remote controller, causing the UAV to make an emergency landing or return home.

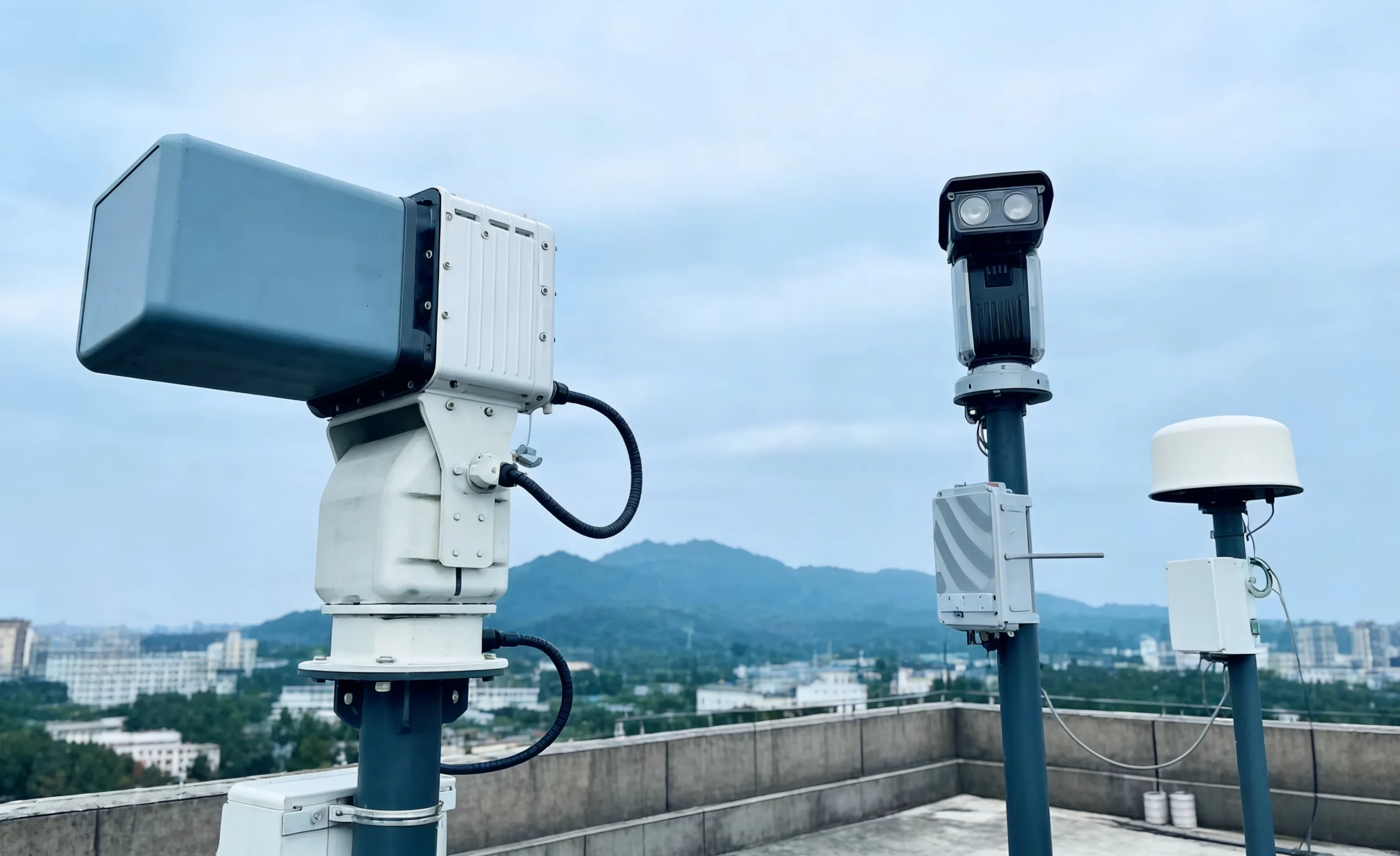

The system be used in a network with our spectrum detection equipment , low-altitude monitoring radar, and command and control platforms. After the detection equipment discovers the UAV target, under the control of the command software, it guides the full-frequency omnidirectional jamming equipment to aim at the direction of the UAV. Turn on interference to drive away or make an emergency landing of intruding drones. The whole system has two working modes: manual and unattended.
The command and control platform can monitor the entire low-altitude situation. The software interface is based on a digital satellite map, marking the system deployment location. Through icon flashes and sound alarms, icons are used to mark the location of the drone and its trajectory on the map. A pop-up window is used on the left to display parameters such as the brand model, frequency, direction, and distance of the intruding drone. On the right is the control panel, with the settings menu on the upper side. The accusation software integrates a large number of platform management functions, such as user management, zone setting, black and white lists, logging, statistical analysis, etc.
Serial Number | Index | Parameter |
1 | Signal source format | Supports DDS sweep source and switching of modulation source modes such as FSK, BPSK, QPSK, QAM, 16AQM, 64QAM, OFDM, etc. |
2 | Interference frequency range | Interference channel output can be set arbitrarily within the 300MHz-6000Mhz frequency band |
3 | Typical interference frequency bands | The center frequency band and bandwidth can be set for typical frequency bands: 430-460MHz, 580-626MHz, 830-868MHz, 900-930MHz, 1180-1210MHz, 1400-1440MHz, 1550-1650MHz, 2400-2500MHz, 5150-5250MHz, and 5715-5860MHz. |
4 | Interference distance | ≥3km (0.1W radiation source，Drone：DJI Mavic 2series) |
5 | I/C ratio | Not less than 10:1 |
6 | Antenna type | High gain directional antenna |
7 | Antenna launch angle | ≥90° (<2G frequency band); ≥60° (2G-4G); ≥30° (>4G) |
8 | Number of interference modules | No less than 4 |
9 | Transmit power | Around 100W/each interference module, the interference transmission power is software adjustable |
