UAV Jamming Equipment

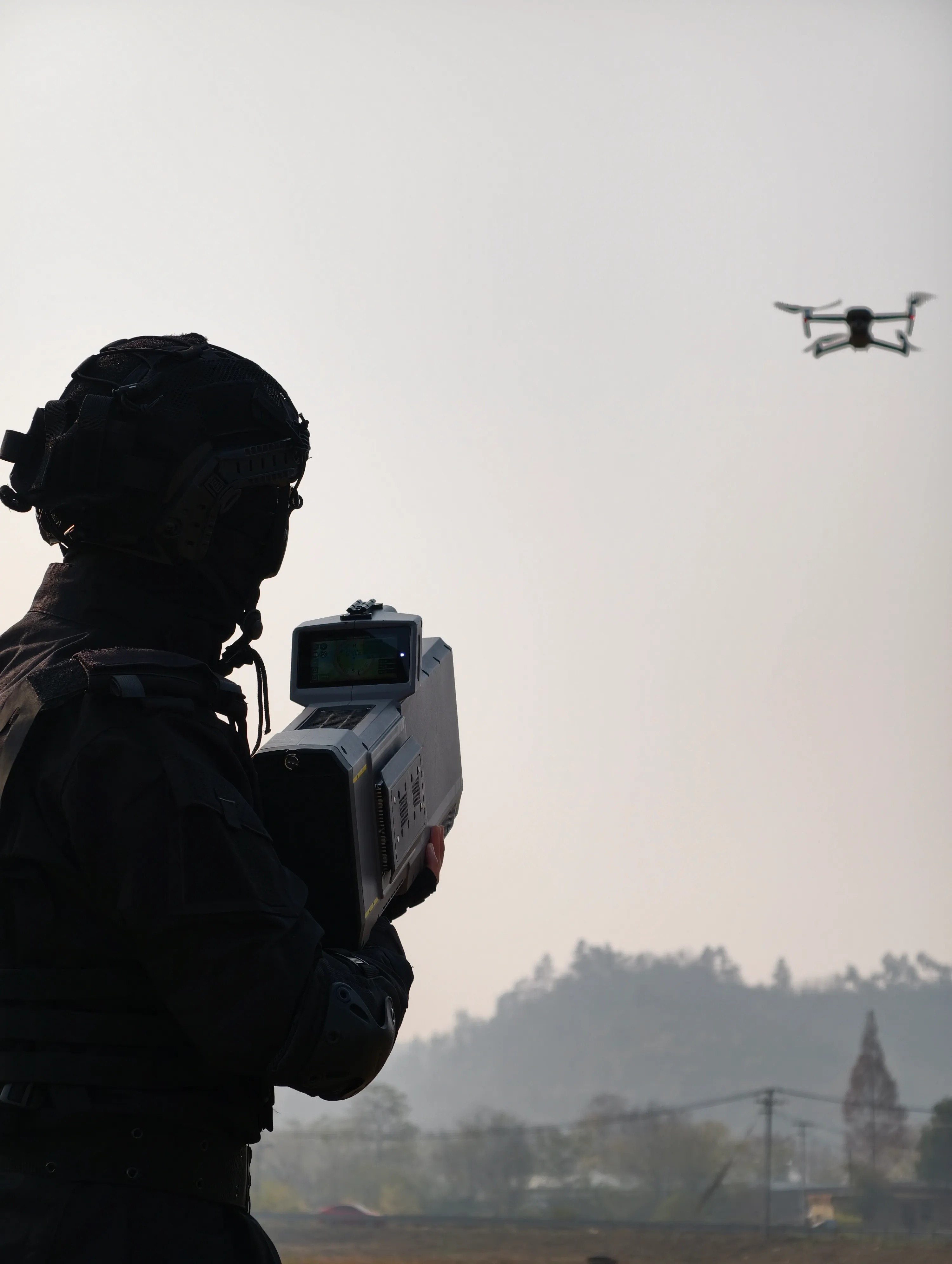

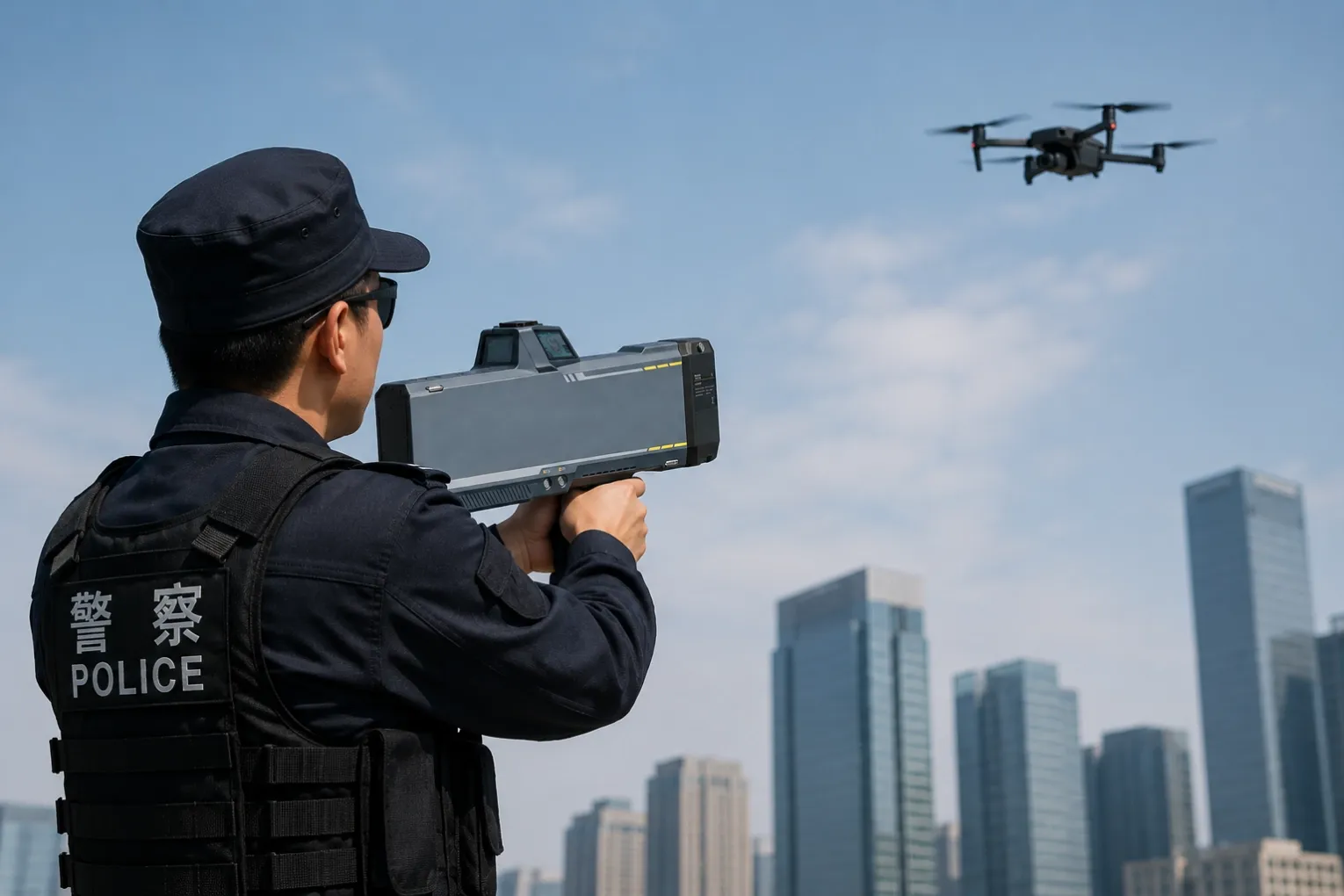

handheld Anti-drone jammer gun
The new generation of portable drone control equipment is a newly upgraded handheld interference gun . The equipment integrates detection, countermeasures, navigation deception, command and control, and can effectively control 4G and 5G new aircraft on the market from a distance, forcing drones to hover, return, and drive away.
Specifications
- Detection drone types
- Most conventional consumer drones, some unconventional drones, some fixed-wing drones, and some flying drones
- Detection coverage band
- 0.3-6GHz
- Radio detection distance
- Around 3 km (Ideal environment,UAV transmission bandwidth:10MHz)
- Discover drone time
- Around 3s
SJ2000M Portable Handheld Anti-UAV Gun | 300MHz-6GHz Drone Detection, Jamming & Navigation Spoofing Integrated System
The new generation of portable drone control equipment is a newly upgraded handheld interference gun . The equipment integrates detection, countermeasures, navigation deception, command and control, and can effectively control 4G and 5G new aircraft on the market from a distance, forcing drones to hover, return, and drive away. At the same time, it is equipped with a photoelectric tracking and identification function to realize early warning, handling during the incident, and evidence collection after the intrusion of drone targets.
Features:
Passive detection, directional control
300 MHz - 6GHz full - band detection, can accurately identify most consumer drones, WIFI toy drones, DIY flying drones, analog/digital image transmission and more than 100 other models ; directional interference antenna design, strong directivity and long interference distance;
Detection, attack and deception
The equipment integrates radio detection, interference suppression , and navigation deception , and has full- band interference capabilities from 300 MHz to 6 GHz . It can effectively deal with all types of consumer drones and unconventional drones, forcing the drones to hover and return. and expulsion;
Photoelectric tracking and identification function
Built-in intelligent optoelectronics can automatically identify , lock and track target drones ;
Smart touch , easy to operate

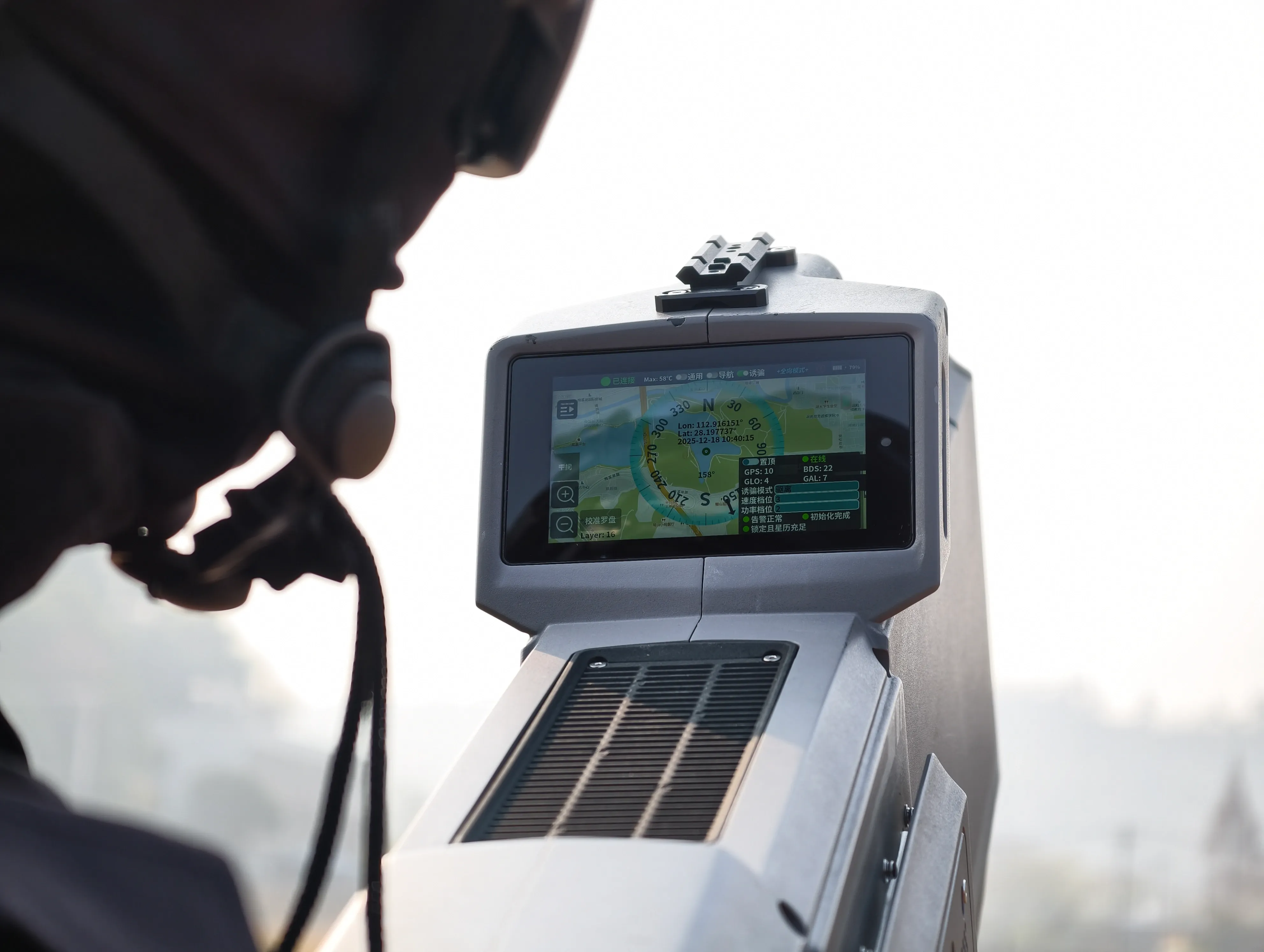

The device is equipped with a touch screen, which can display information such as drone model, orientation, reference distance, target screen, etc. Users can adjust system settings such as device parameters, black and white lists, historical data , and version updates through the touch screen.
Technical Parameters: | |
Detect technical indicators | |
Detection system | Radio passive detection |
Detection signal type | UAV digital transmission signal, UAV remote control signal, WIFI system UAV signal |
Detection drone types | Most conventional consumer drones, some unconventional drones, some fixed-wing drones, and some flying drones |
Detection coverage band | 0.3-6GHz |
Radio detection distance | Around 3 km (Ideal environment,UAV transmission bandwidth:10MHz) |
Discover drone time | Around 3s |
Alarm mode | LED display, sound alarm, screen display |
Direction finding capability | Confirm the direction of the drone , direction finding accuracy ≤10° |
direction finding method | By alarm sound frequency and received drone signal amplitude (screen display) |
Interference technical indicators | |
Key interference frequency bands | 0.3-2GHz, 2-2.7GHz, 2.4-5.5GHz, 5-6GHz |
Software-definable frequency bands | Software- definable interference channels in the full frequency band of 300MHz ~ 6 GHz |
Interference distance | Around 2km (0.1W radiation source,Typical UAV model:DJI phantom series) |
I/C ratio | Not less than 3 :1 |
Antenna type | Directional antenna |
Transmit power | Each frequency band≤45dBm |
Interference effective time | ≤5s |
Overall machine index | |
Application method | Handheld |
Power supply | Built-in lithium battery 24V power supply , 2 pcs as standard ; external DC power supply |
Information display mode | Comes with 4-inch touch screen display |
Device battery life | Standby time ≥ 24h; continuous working time ≥ 1h; Full-band interference work ≥ 0.5h |
Overall size | ≤650*120*250mm |
Total Weight | ≤ 7 kg |
Operating temperature | -40℃-60℃ |
Protection level | IP54 |
