UAV countermeasure Equipment

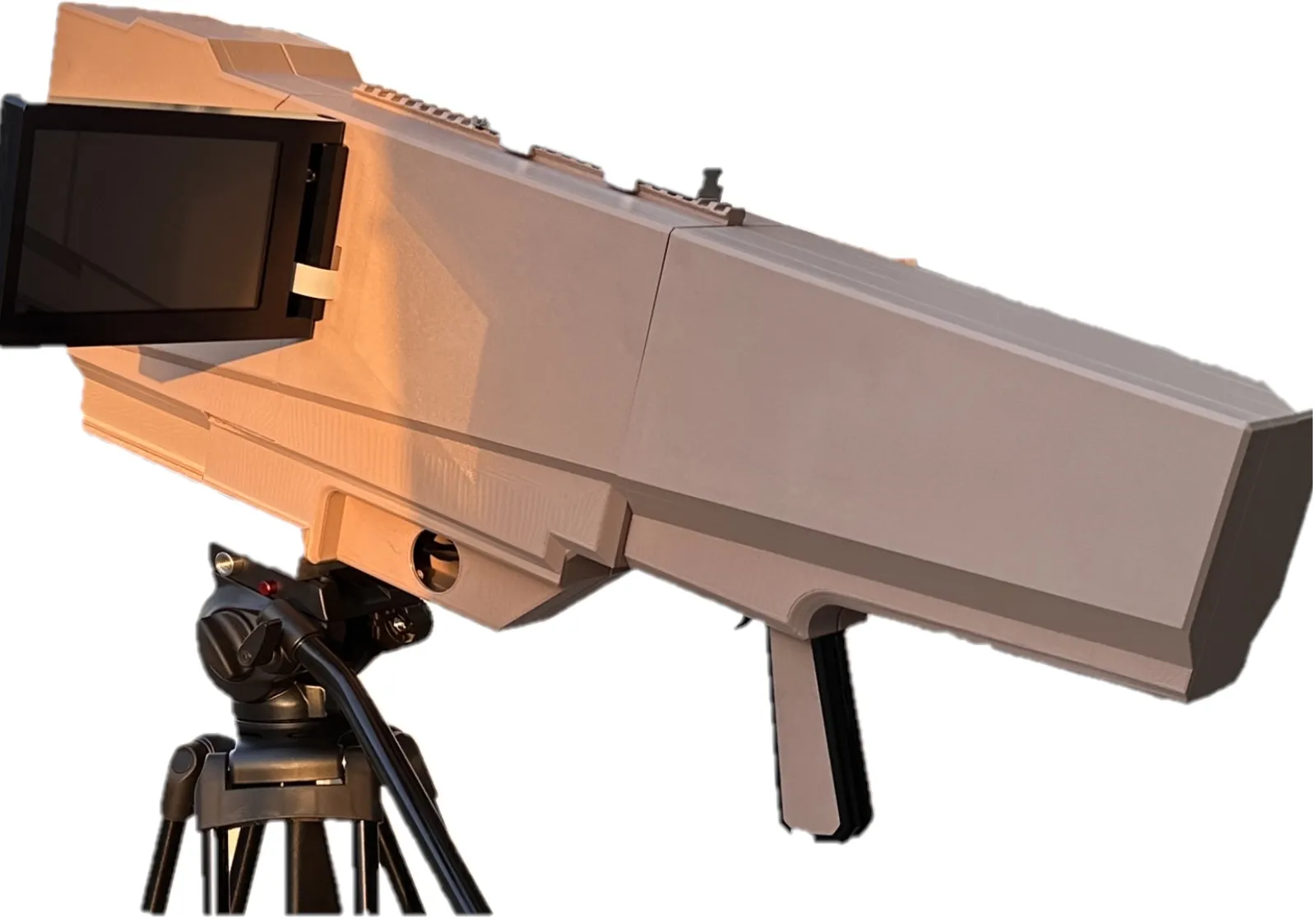

Handheld Laser destructive equipment

The 2kw Laser destructive equipment is divided into two parts: handheld and backpack. It can be held by a single soldier and placed on a tripod; An unmanned turntable can be optionally selected, which can be linked with the detection system, display the drone's position on the screen, and can be adapted to mechanical dogs.

Specifications

Target
Small UAV（for example DJI Phantom 4）、bird
Laser power
2kw
maximum strike distance @ time
500m@≤15s(visibility is 10km)
Handheld Laser destructive equipment for UAV Defense
The 2kw Laser destructive equipment is divided into two parts: handheld and backpack. It can be held by a single soldier and placed on a tripod; An unmanned turntable can be optionally selected, which can be linked with the detection system, display the drone's position on the screen, and can be adapted to mechanical dogs. The equipment can be used for unmanned aerial UAV countermeasures in targeted areas, anti inorganic countermeasures and bird control in airports, destruction of unexploded ordnance in shooting ranges, urban obstacle clearance, and other scenarios. The equipment is equipped with advanced self locking and self focusing technologies, which can automatically identify, lock, and accurately strike targets in a wide field of view without excessive manual intervention. The equipment has extremely high portability and operability, with a total weight (including battery) of 28kg. It is compact in size and lightweight, making it easy for a single person to work and respond quickly to emergencies.



Item
Technical parameter
target
Small UAV（for example DJI Phantom 4）、bird
working mode
daytime mode、night mode
laser power
2kW
maximum strike distance @ time
500m@≤15s(visibility is 10km)
typical strike distance @ time
200m@≤3s、300m@≤8s(visibility is 10km)
Laser single continuous output time
1s～30s
strike time again
≤3s
battery replacement time
≤2min
full battery usage time
≥4min（Shoot down no less than 24 UAVs）
weight
Handheld part ≤ 10kg, laser part ≤ 18kg
