UAV countermeasure Equipment
Interceptor Uav
The Kinetic anti-UAV System comprises interceptors, camera, image transmission equipment, ground stations, remote controllers, VR goggles, and other components. Guided by the detection system and coordinated by the command and control system, it works together to detect, track, decision-making, intercept, and neutralize light and small unmanned aerial vehicles (UAVs) and patrol missiles
Specifications
- Maximum takeoff weight
- 1.8kg
- Maximum speed
- ≮70m/s
- Maximum endurance
- ≮5min
- Maximum range
- ≮12km
- Wind resistance rating
- Less than Grade 6

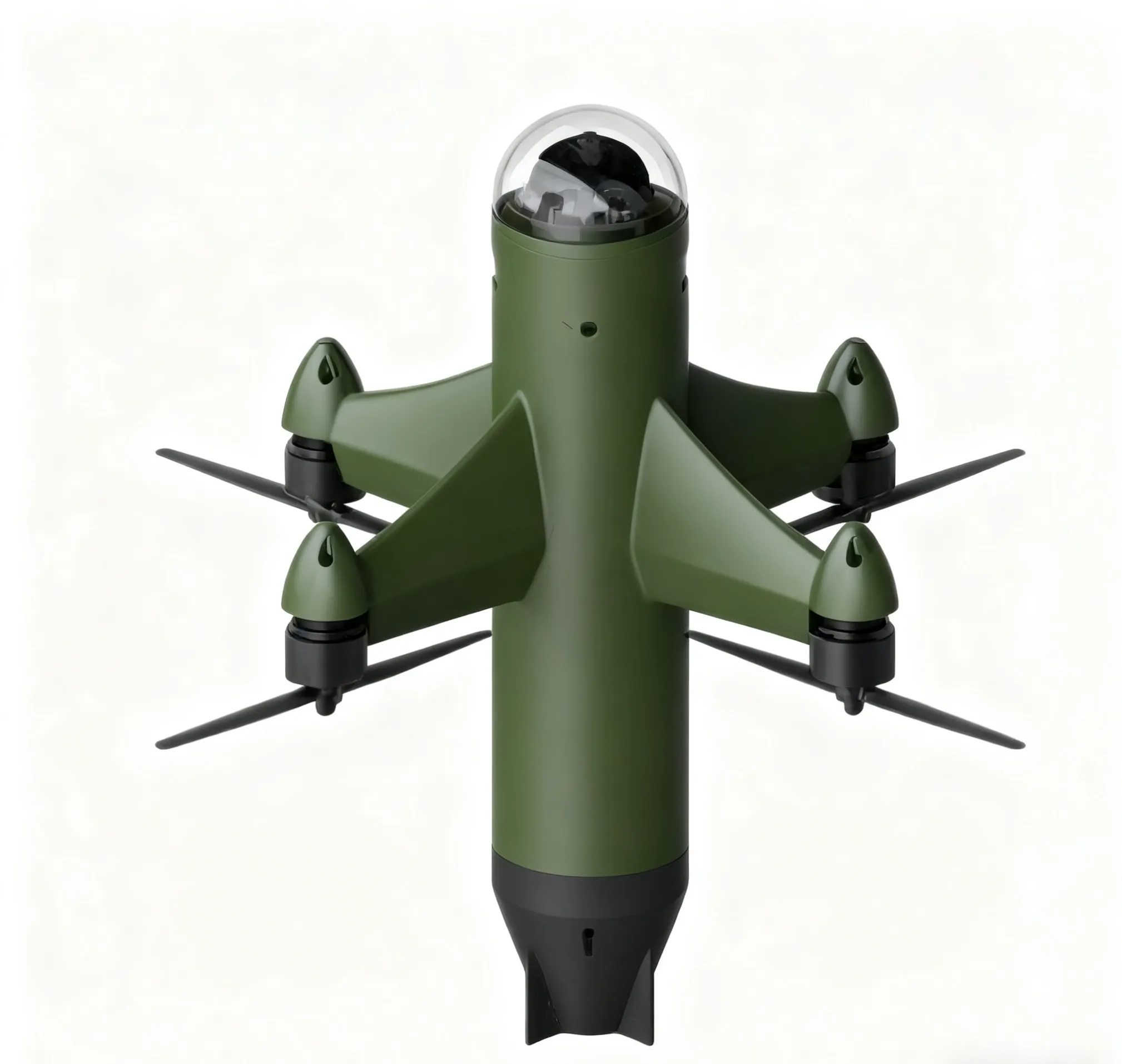

Rocket drone-Innovative Kinetic Interceptor Uav System for Collision Drone
Product description
The Kinetic anti-UAV System comprises interceptors, camera, image transmission equipment, ground stations, remote controllers, VR goggles, and other components. Guided by the detection system and coordinated by the command and control system, it works together to detect, track, decision-making, intercept, and neutralize light and small unmanned aerial vehicles (UAVs) and patrol missiles.
Product features
High Interception Accuracy
Equipped with an advanced targeting and tracking system, it utilizes high-resolution cameras to capture the position, speed, and flight path of target drones in real time, providing precise guidance for interception and collision.
High maneuverability
The kinetic interceptor drones has excellent speed and agility. Capable of reaching speeds up to 70m/s, its unique aerodynamic design and electric thrust vector control enable precise tracking during high-speed maneuvers, effectively pursuing evasive enemy drones.
Reusable
The kinetic interceptor drone is reusable. Equipped with a recovery mechanism upon successful impact, it offers a reusable “hard kill” solution that reduces operational costs, meeting the demand for “rapid, flexible, and low-cost” air threat neutralization;
Deployment Flexibility
The kinetic interceptor drone features a compact and portable design, enabling easily carried by individual soldiers and rapid deployment. Without requiring large radars or complex command chains, it can be flexibly deployed to form a “point defense” network, providing swift countermeasures against drone threats.
UAV Specifications | ||
No. | Indicator | Parameter |
1 | Maximum takeoff weight | 1.8kg |
2 | Dimensions | 350×350×480mm |
3 | Maximum speed | ≮70m/s |
4 | Maximum endurance | ≮5min |
5 | Maximum range | ≮12km |
6 | Maximum axial overload | ≮6g |
7 | Maximum lateral overload | ≮3g |
8 | Positioning and Navigation Methods | Manual/GNSS |
9 | Body Material | ABS Engineering Plastic + Carbon Fiber Material |
10 | Control radius | approximately 6 kilometers - depending on the communication environment at the time |
11 | Mission flight altitude | ≤1000 meters |
12 | Maximum altitude for flight operation | Recommended below 4,500 meters. Higher altitudes require the optional high-altitude power system. |
13 | Supported Driving Modes | Manual |
14 | Wind resistance rating | Less than Grade 6 |
15 | Operating temperature range | -20℃~50℃ |
Camera Specifications | ||
16 | Effective recognition distance | 300m |
17 | Camera Resolution | 1920*1080 |
18 | Focal length | 12mm |
