Millimeter-wave radar
UAV radar Sensor
MR72-UAV is a compact 77GHz distance measurement radar. It adopts double beam design, 0.2~40m measurement distance, small size, high sensitivity, stable performance, light weight, easy to integrate, and it can meet the application needs of unmanned flight platform (uav /UAS), helicopter, small airship and other fields, product performance has been recognized by many partners.

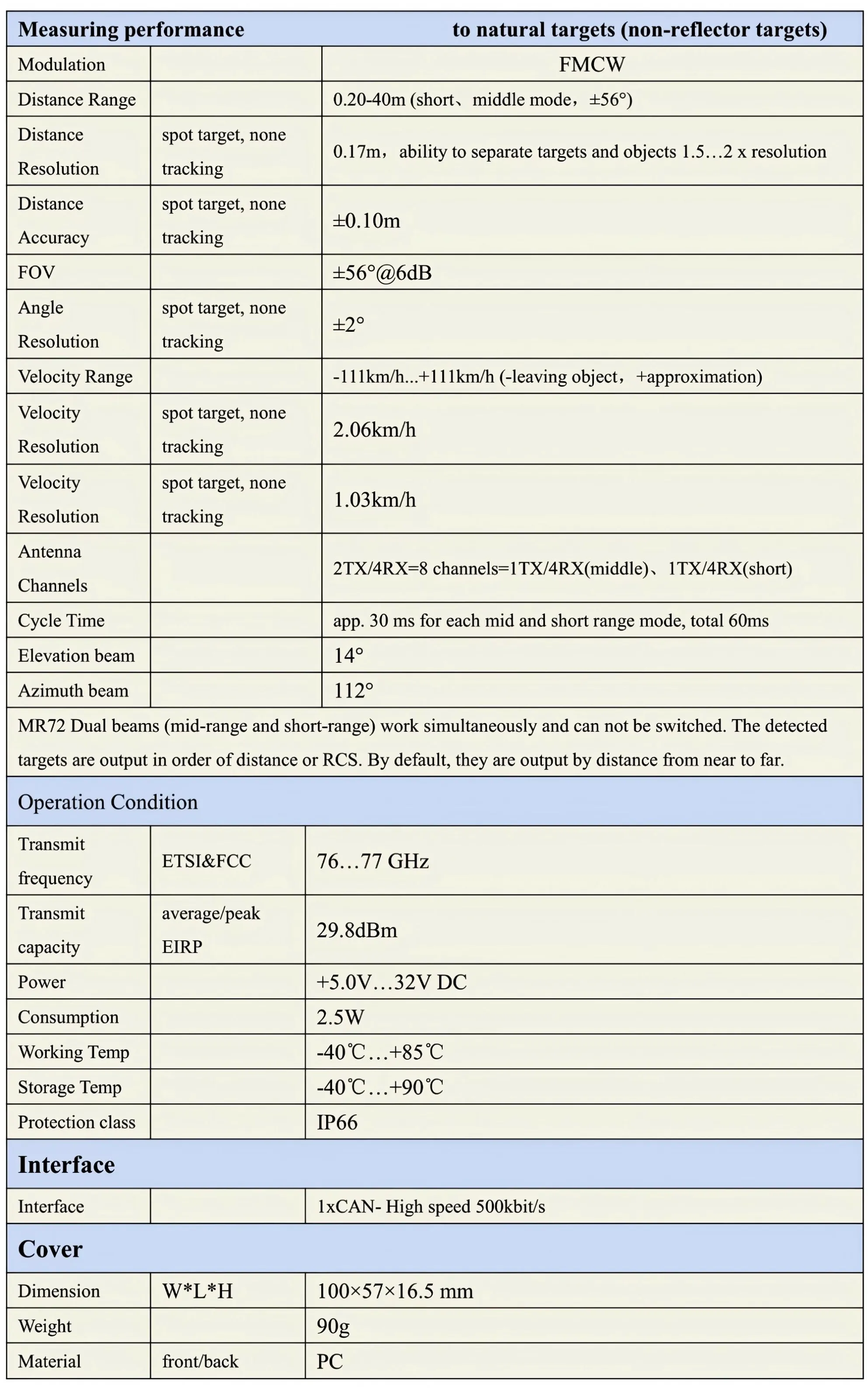

Specifications
- Measurement range
- 0.2-40m
- Ranging Accuracy
- ±0.01m
- Dimensions
- 100 × 57 × 16.5mm
MR72 Millimeter-Wave Radar Sensors for Altitude Measurement and Collision Avoidance in Agricultural Drones
MR72-UAV is a compact 77GHz distance measurement radar. It adopts double beam design, 0.2~40m measurement distance, small size, high sensitivity, stable performance, light weight, easy to integrate, and it can meet the application needs of unmanned flight platform (uav /UAS), helicopter, small airship and other fields, product performance has been recognized by many partners.
It can guide the uav to avoid obstacles accurately in flight by transmitting two-beam fan-shaped microwaves to the front, detecting the reflection of microwaves, judging whether there are obstacles in front, and feedback the relative distance between obstacles and radar.
MR72-UAV adopts high integration density MMIC solution, very low power
consumption(2.5W), small size (100×57×16.5mm)，double beam design, max detect range
40m, light weight design, which can meet the distance measurement requirements for
unmanned sweeper, unmanned logistics vehicle, engineering vehicle, mining vehicle and so on.
MR72-UAV is the only mass production 77GHz millimeter wave radar for unmanned areal
vehicles obstacle avoidance, its excellent performance is highly recognized by many partners.
For customer’s convenient to develop and test, MR72-UAV mmv radar provides CAN interface, the communication rate of 500Kb/s, target update rate 17GHz, universal external
communication interface makes it easy to integrate with PC or other MCU modules, it will
save user configuration time.
